Tube/Rail Mount Device Holder — Tablet · Phone · Garmin (Parametric Kit, 3D Print)

🔖 Art. ML3D_0034

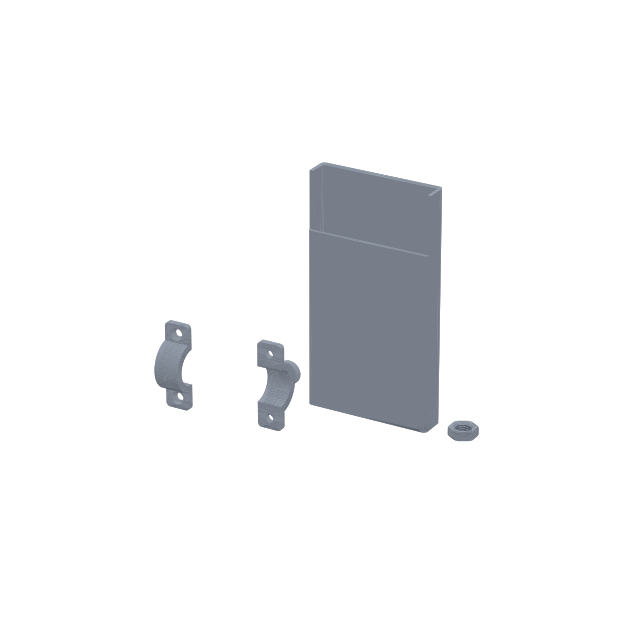

🔖 Art. ML3D_0034 Parametric TUBE/RAIL MOUNT DEVICE HOLDER by MarineLab3D — clamps to a rail, guard-rail, pushpit/pulpit, pole or pipe (no drilling) and holds your gear: tablet, phone/smartphone, Leatherman & multitools, Garmin GPS/chartplotter & handhelds, VHF/remotes, torches and more. 📦 The ZIP contains 4 parts: • Box/cradle — holds the device, parametric to your size • M10 nut — locks the joint • Tube collar — half with M10 female collar • Tube collar — free half (bolts around the tube) 🪢 TUBE COLLAR (2-piece clamp): wraps the tube and bolts shut; the M10 female collar does NOT intrude into the tube seat. Fits any tube Ø you set. 🧭 Adjustable SIDE TILT: the box (M10 male) screws into the collar; rotate to the angle you want and lock it with the M10 nut. 📐 Fully parametric box (internal sizes): height, width, depth — set it to fit your device. ⬇️ Lowerable FRONT wall to see/use the screen · 🕳️ bottom 16×12 cable opening + side openings · 🔝 open top. 🖨️ Print in PETG or ASA · 0.2 mm, 3–4 perimeters, 30–40% infill. M10 threads printed and ready to use. Use “Customize dimensions” to set the box size, front-wall drop, tube Ø and clamp bolt Ø, preview in 3D, then receive your ZIP (box + nut + 2 collar halves) after purchase. 🖨️ No 3D printer? After your purchase, on your download page you can request an instant print quote: your model is sent pre-loaded to our partner Craftcloud, which compares ~180 print services worldwide and ships the finished part to your door — no printer or setup required. 📄 License — Personal use only. Print this model for your own personal use. Reselling or redistributing the file, or selling printed copies, is not allowed. © MarineLab3D — full terms: https://marinelab3d.com/pages/license

🔌 Compatible with: Garmin (chartplotter/GPS holder), Raymarine (display holder), Simrad (display holder), B&G (instrument display holder), Makita (battery & tool organizer), Dewalt (battery & tool organizer), Milwaukee (battery & tool organizer)
