Wall Mount Device Holder — Tablet · Phone · Garmin (Parametric Kit, 3D Print)

🔖 Art. ML3D_0033

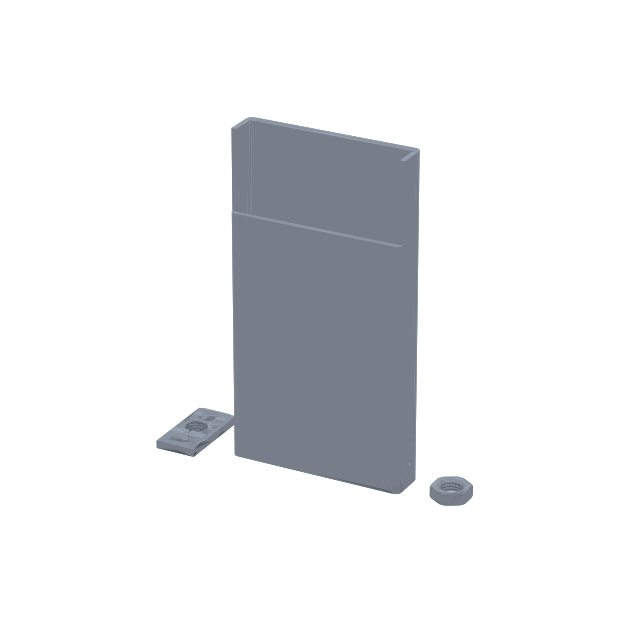

🔖 Art. ML3D_0033 Parametric WALL MOUNT DEVICE HOLDER by MarineLab3D — a complete 3-part kit to mount and protect your gear on board or at home: tablet, phone/smartphone, Leatherman & multitools, Garmin GPS/chartplotter & handhelds, VHF/remotes, action cams, torches and more. 📦 The ZIP contains 3 parts: • Wall plate — fixes to the bulkhead/wall, central M10 female thread • Box/cradle — holds the device, parametric to your size • M10 nut — locks the joint 🧭 Adjustable SIDE TILT: the box screws onto the plate via the M10 joint; rotate to the angle you want and lock it with the M10 nut. 🔩 Wall fixing with adjustable slots: vertical slot (height adjust) + horizontal slot (left/right adjust), both countersunk for flush screw heads. Flat back for full wall contact. 📐 Fully parametric box (internal sizes): height, width, depth — set it to fit your exact device. ⬇️ Lowerable FRONT wall: drop the front by any amount (even fully) to see and use the screen. 🕳️ Bottom 16×12 mm opening for charging cable/connector + two side openings for cable routing / ventilation. 🔝 Open top — drop the device straight in. 🖨️ Print in PETG or ASA (best UV/heat for cockpit) · 0.2 mm, 3–4 perimeters, 30–40% infill. The M10 threads are printed and ready to use. Use “Customize dimensions” to set the box height/width/depth and front-wall drop, preview in 3D, then receive your ZIP (plate + box + nut) after purchase. 🖨️ No 3D printer? After your purchase, on your download page you can request an instant print quote: your model is sent pre-loaded to our partner Craftcloud, which compares ~180 print services worldwide and ships the finished part to your door — no printer or setup required. 📄 License — Personal use only. Print this model for your own personal use. Reselling or redistributing the file, or selling printed copies, is not allowed. © MarineLab3D — full terms: https://marinelab3d.com/pages/license

🔌 Compatible with: Garmin (chartplotter/GPS holder), Raymarine (display holder), Simrad (display holder), B&G (instrument display holder), Makita (battery & tool organizer), Dewalt (battery & tool organizer), Milwaukee (battery & tool organizer)

Disclaimer. MarineLab3D sells digital 3D files, not finished parts. The strength, fit and safety of the printed part depend on your printer, material, settings and assembly, which are outside our control. Verify all dimensions before printing, use the recommended material and inspect every print. Provided “as is” without warranty; to the maximum extent permitted by law MarineLab3D is not liable for any damage, loss or injury arising from their use. Not certified marine equipment. Full Disclaimer & Terms of Use.
