Screw-out Deck Inspection Plate (Winch-open) — Parametric (3D Print)

🔖 Art. ML3D_0026

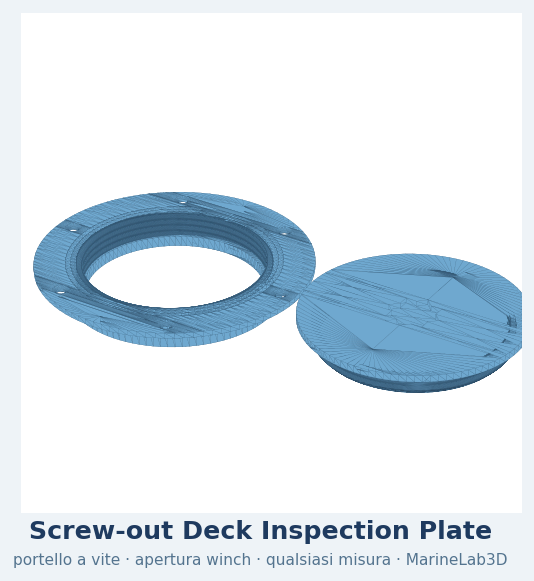

🔖 Art. ML3D_0026 Parametric SCREW-OUT DECK INSPECTION PLATE by MarineLab3D — generates TWO parts: the mounting ring (fixing flange + female-threaded collar that drops into your deck hole) and the screw-in lid. Sized exactly to your deck cutout. 🛠️ Mounting flange with 6 countersunk screw holes 🗝️ Lid opens with a winch handle / our Boat Key (central 8-point socket) 🕳️ Deck hole Ø fully parametric · flange Ø parametric (min = hole + 24 mm) 🧵 Big, easy-start thread · engagement adjustable 10–30 mm 💧 O-ring seat on the TOP face only (under the lid), never on the thread 🖨️ Print in ASA (best UV) or PETG · 0.2 mm, 3–4 perimeters. Bed the ring on sealant; fit an O-ring/foam gasket in the seat. Use “Customize dimensions” to set deck hole Ø, flange Ø, thread length, screw Ø and O-ring, preview in 3D, then receive your ZIP (ring + lid) after purchase. 🖨️ No 3D printer? After your purchase, on your download page you can request an instant print quote: your model is sent pre-loaded to our partner Craftcloud, which compares ~180 print services worldwide and ships the finished part to your door — no printer or setup required. 📄 License — Personal use only. Print this model for your own personal use. Reselling or redistributing the file, or selling printed copies, is not allowed. © MarineLab3D — full terms: https://marinelab3d.com/pages/license

Related designs: Tank Cap with Winch Socket (BSP, replacement) — Parametric (3D Print), Vent Grille — Parametric (3D Print), Push-in Screw / Hole Cover Caps — Parametric (3D Print)

Disclaimer. MarineLab3D sells digital 3D files, not finished parts. The strength, fit and safety of the printed part depend on your printer, material, settings and assembly, which are outside our control. Verify all dimensions before printing, use the recommended material and inspect every print. Provided “as is” without warranty; to the maximum extent permitted by law MarineLab3D is not liable for any damage, loss or injury arising from their use. Not certified marine equipment. Full Disclaimer & Terms of Use.

⚠ Load-bearing / pressure part. Suggested loads or pressures are indicative estimates for a well-printed part in the recommended material, not guarantees. Run your own load/pressure test before relying on it. Do not use for life-safety or critical applications (lifelines, harness/tether attachment, standing rigging, steering, gas or fuel systems) unless independently tested and certified by a qualified professional.
