Name: Customisable Bushings & Washers — Parametric (3D Print)
Brand: marinelab3d
SKU: ML3D_0002
Availability: InStock

🔖 Art. ML3D_0002

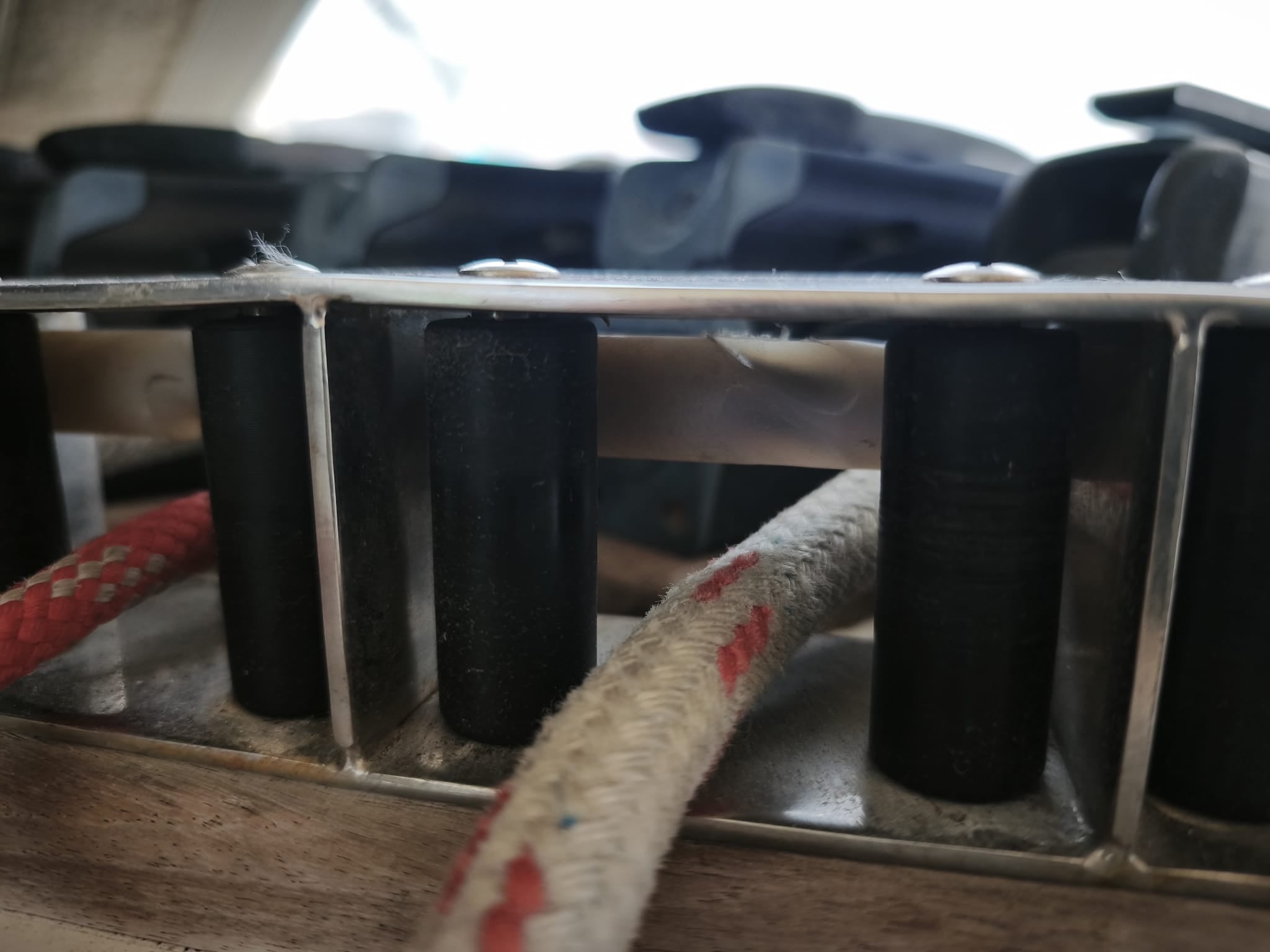

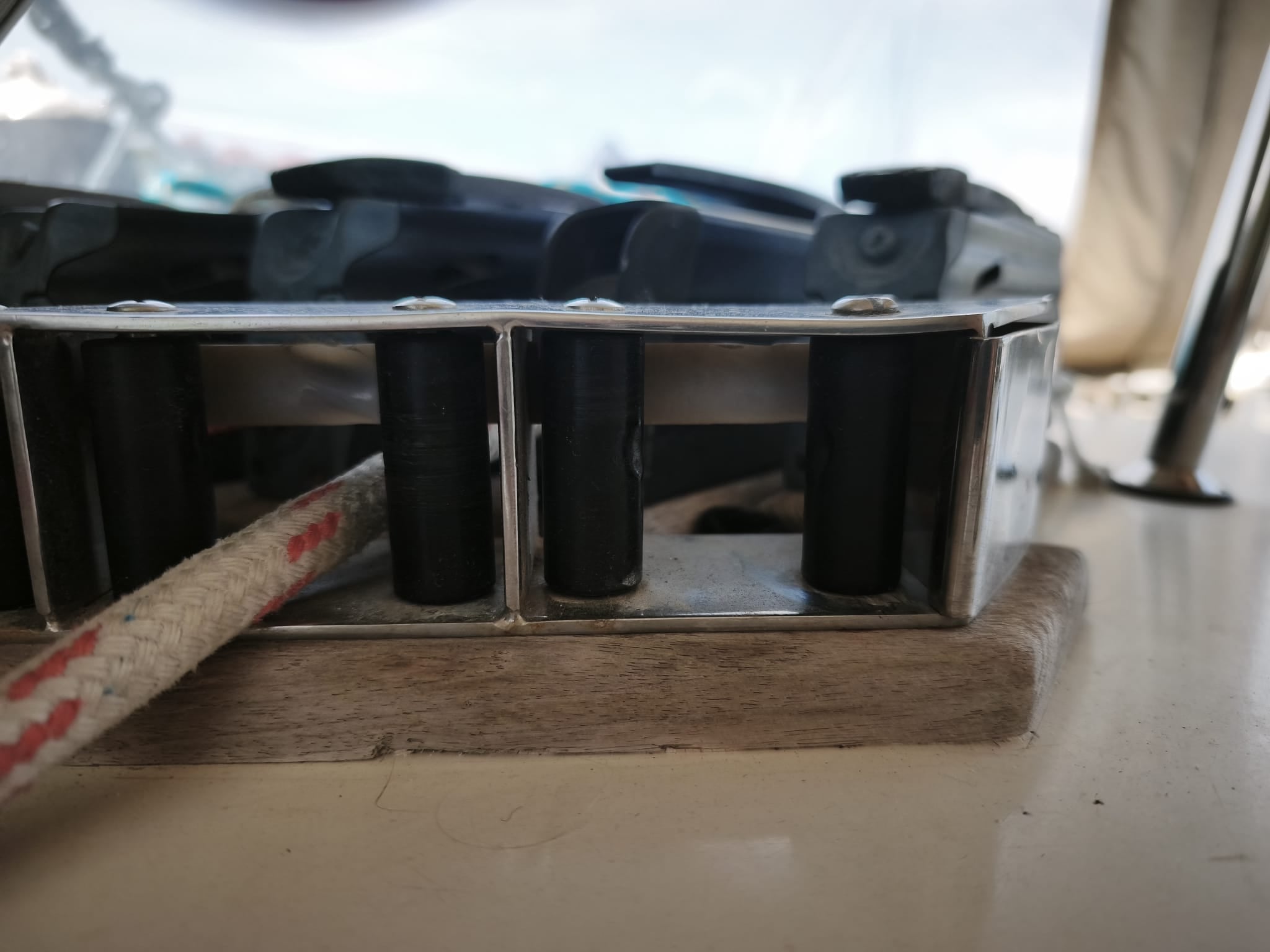

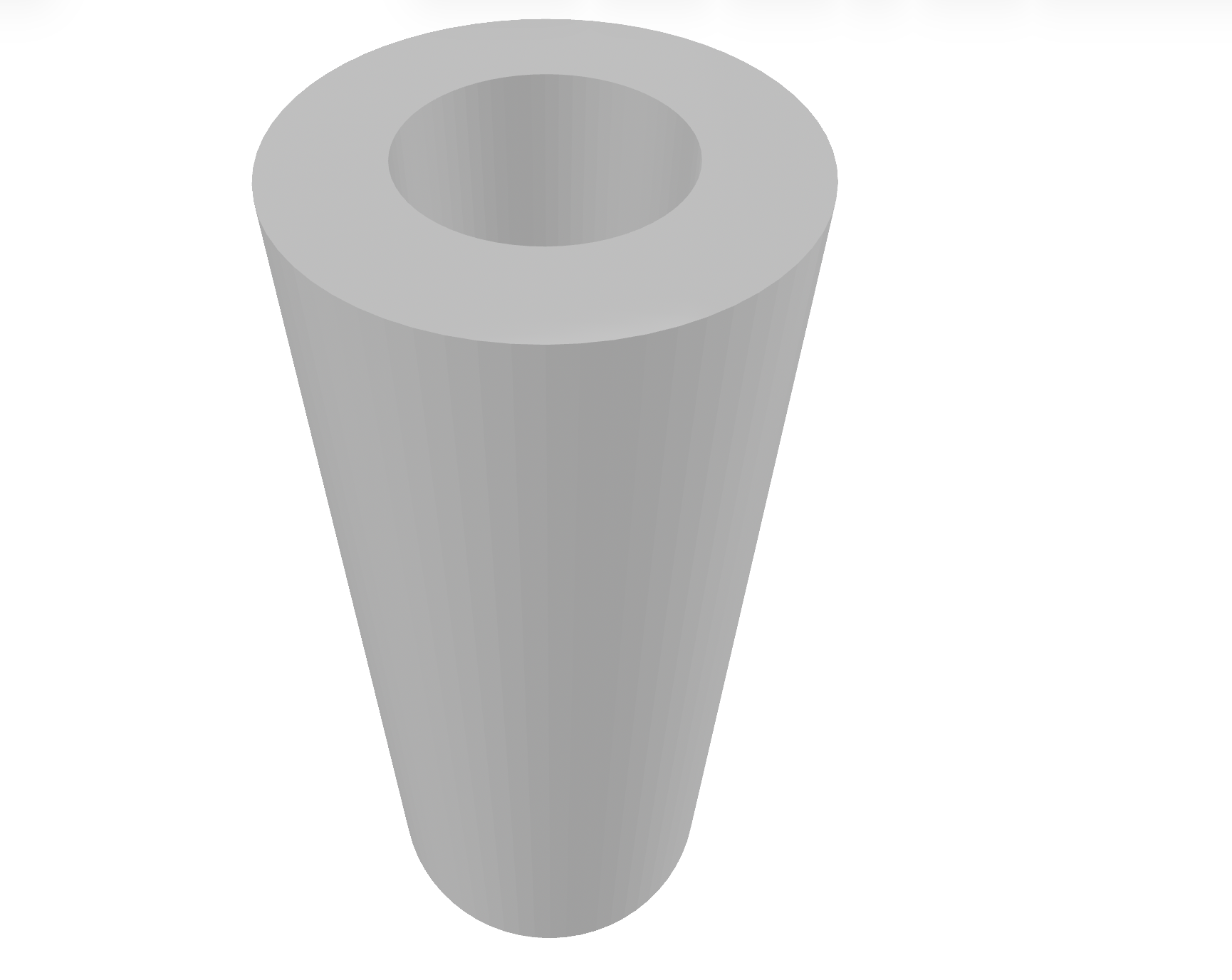

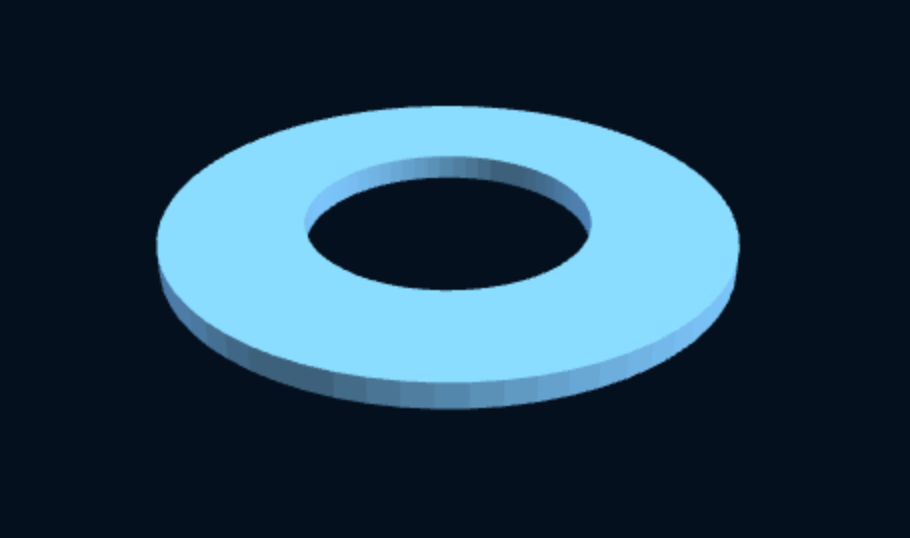

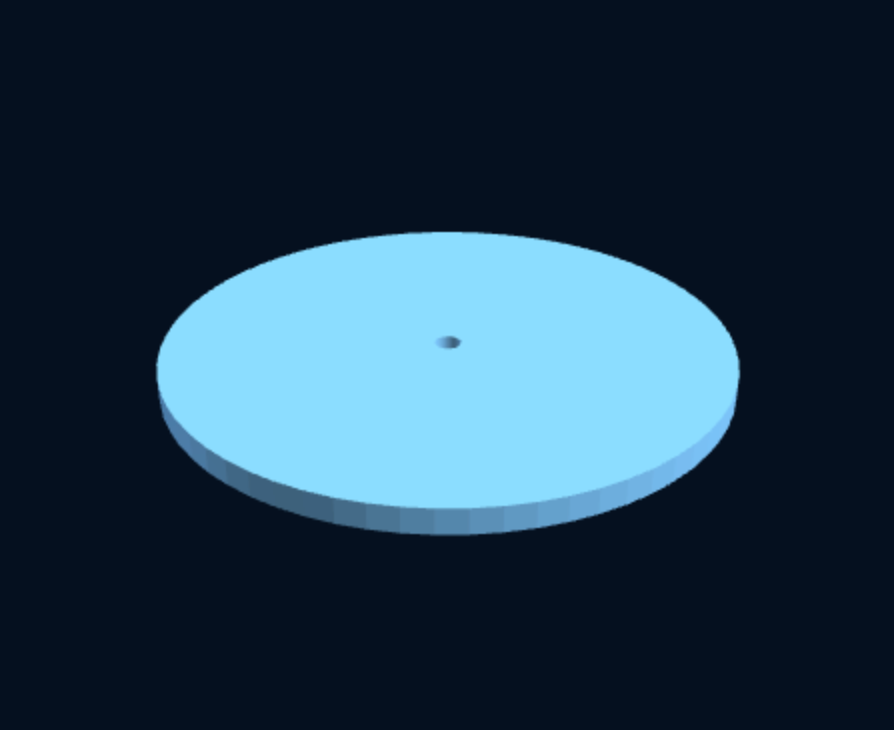

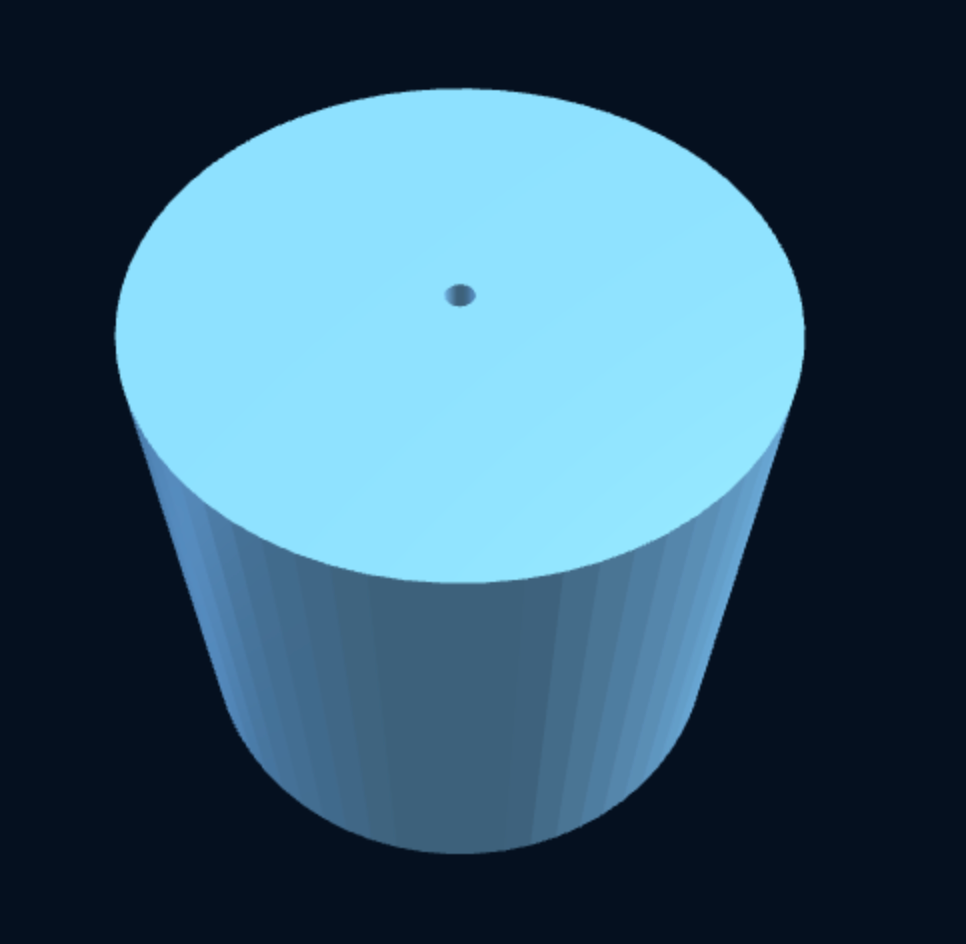

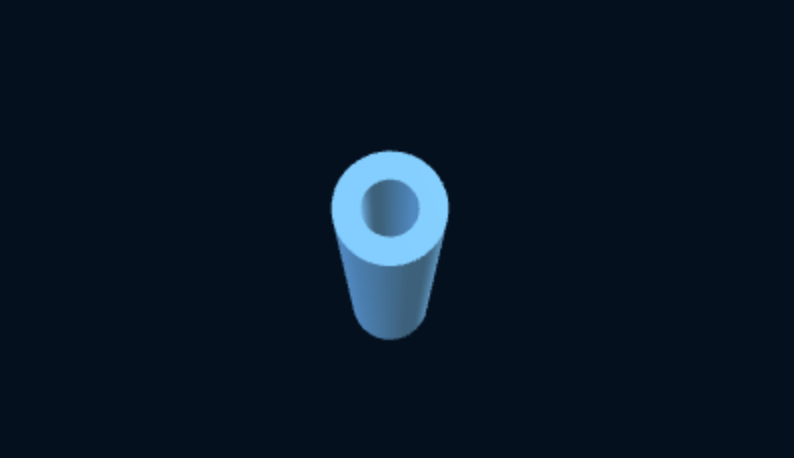

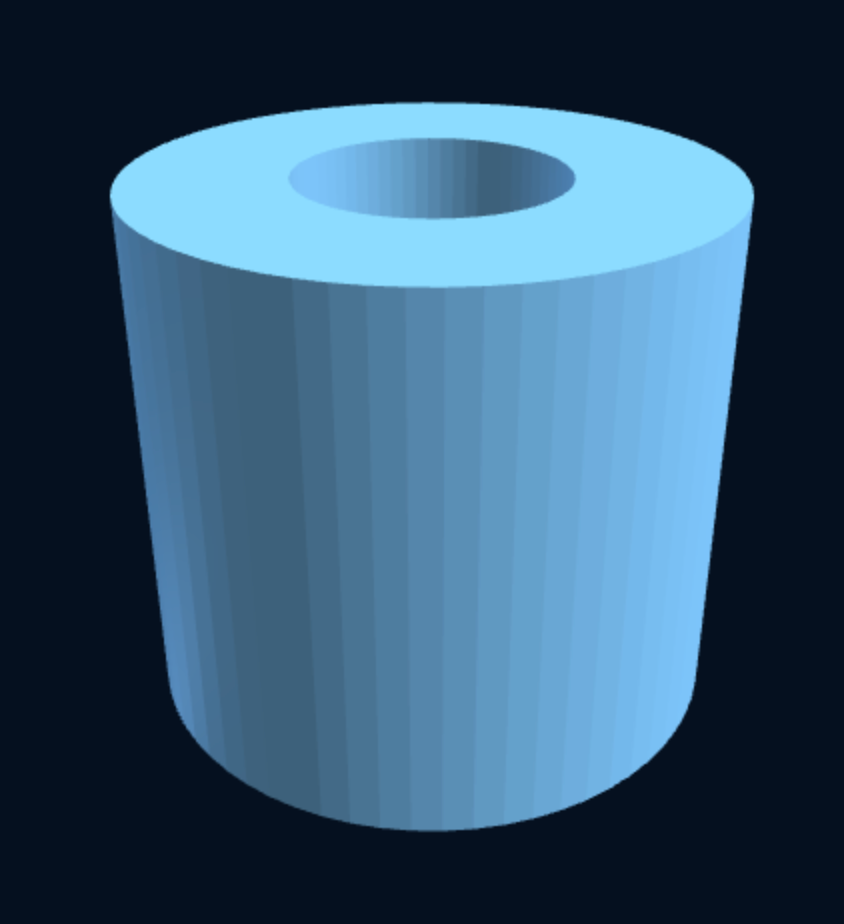

🔖 Art. ML3D_0002 Parametric WASHERS & BUSHINGS by MarineLab3D — generate any washer or spacer bushing to the EXACT size you need. Set inner Ø, outer Ø and length, preview in 3D, and receive your STL after purchase. Washers of any diameter and thickness: • Shims and spacers (thin to thick) • Sealing / backing washers • Large fender washers to spread load • Spacer rings under fittings and hardware Bushings & sleeves for organizers and mounts: • Standoffs / spacers for drawers and toolboxes • Sleeves to reduce a hole to a smaller Ø • Cable / rod pass-throughs and grommetless bushings • Pen, brush and tool holders for drawer organizers • Foot / leveling pads and protective sleeves ⚙️ The outer Ø is always at least inner Ø + 2 mm (1 mm wall per side) so every part stays printable and solid. 🖨️ Print in PLA, PETG, ABS/ASA or Nylon · any infill · no supports needed. Use “Customize dimensions” to set inner Ø, outer Ø and length, preview in 3D, then receive your STL after purchase. 🖨️ No 3D printer? After your purchase, on your download page you can request an instant print quote: your model is sent pre-loaded to our partner Craftcloud, which compares ~180 print services worldwide and ships the finished part to your door — no printer or setup required. 📄 License — Personal use only. Print this model for your own personal use. Reselling or redistributing the file, or selling printed copies, is not allowed. © MarineLab3D — full terms: https://marinelab3d.com/pages/license

🔧 Specifiche tecniche

🖨️ Metodi di produzione compatibili

3D Print FDM — Stampa FDM (Fused Deposition Modeling) — deposizione di filamento strato per strato. Ideale per prototipi e parti funzionali. Richiede slicer (Bambu Studio, Prusa Slicer, Cura, OrcaSlicer). Tempi di stampa: 1–12 ore. Ottimo rapporto qualità/prezzo.

3D Print SLA/Resin — Stampa SLA/MSLA (Resina fotopolimerica) — altissima risoluzione, superfici lisce. Ideale per parti con dettaglio fine. Richiede post-cura UV. Più costosa dell'FDM, ottima per componenti estetici e piccoli.

3D Print SLS/Nylon — Stampa SLS (Selective Laser Sintering) — sinterizzazione laser di polvere di nylon. Parti robuste senza supporti, eccellente per geometrie complesse. Richiede service professionale.

🧱 Materiali compatibili testati

FDM

ASA — ASA — eccellente stabilità UV, resistenza alle intemperie e ai raggi solari. Sostituto dell'ABS con migliori prestazioni outdoor. Ideale per parti esterne esposte.

CF-PETG (carbon) — CF-PETG (fibra di carbonio) — PETG rinforzato con fibre di carbonio corte. Alta rigidità, peso ridotto, ottimo aspetto. Abrasivo: richiede ugello indurito (hardened nozzle).

CF-Nylon (carbon) — CF-Nylon (fibra di carbonio) — nylon rinforzato con fibre di carbonio. Massima rigidità tra i filamenti FDM. Richiede ugello indurito e camera chiusa. Per carichi elevati.

Nylon PA12 — Nylon PA12 — ottima resistenza meccanica, flessibilità, bassa usura. Assorbe umidità (conservare asciutto). Eccellente per parti di trasmissione e componenti tecnici.

TPU (flexible) — TPU (flessibile) — elastomero termoplastico. Resistente agli urti, flessibile, buona resistenza chimica. Ideale per guarnizioni, protezioni e parti soggette a vibrazione.

📁 Formati file inclusi

STL — STL — formato universale per stampa 3D. Compatibile con tutti gli slicer. Solo geometria, senza informazioni di scala (verifica le dimensioni nel slicer).

ℹ️ File digitale — nessuna spedizione fisica. Dopo l'acquisto ricevi un link per scaricare i file direttamente.

Disclaimer. MarineLab3D sells digital 3D files, not finished parts. The strength, fit and safety of the printed part depend on your printer, material, settings and assembly, which are outside our control. Verify all dimensions before printing, use the recommended material and inspect every print. Provided “as is” without warranty; to the maximum extent permitted by law MarineLab3D is not liable for any damage, loss or injury arising from their use. Not certified marine equipment. Full Disclaimer & Terms of Use.

⚠ Load-bearing / pressure part. Suggested loads or pressures are indicative estimates for a well-printed part in the recommended material, not guarantees. Run your own load/pressure test before relying on it. Do not use for life-safety or critical applications (lifelines, harness/tether attachment, standing rigging, steering, gas or fuel systems) unless independently tested and certified by a qualified professional.
