Anchor Bow Roller — Grooved, Parametric (3D Print)

🔖 Art. ML3D_0040

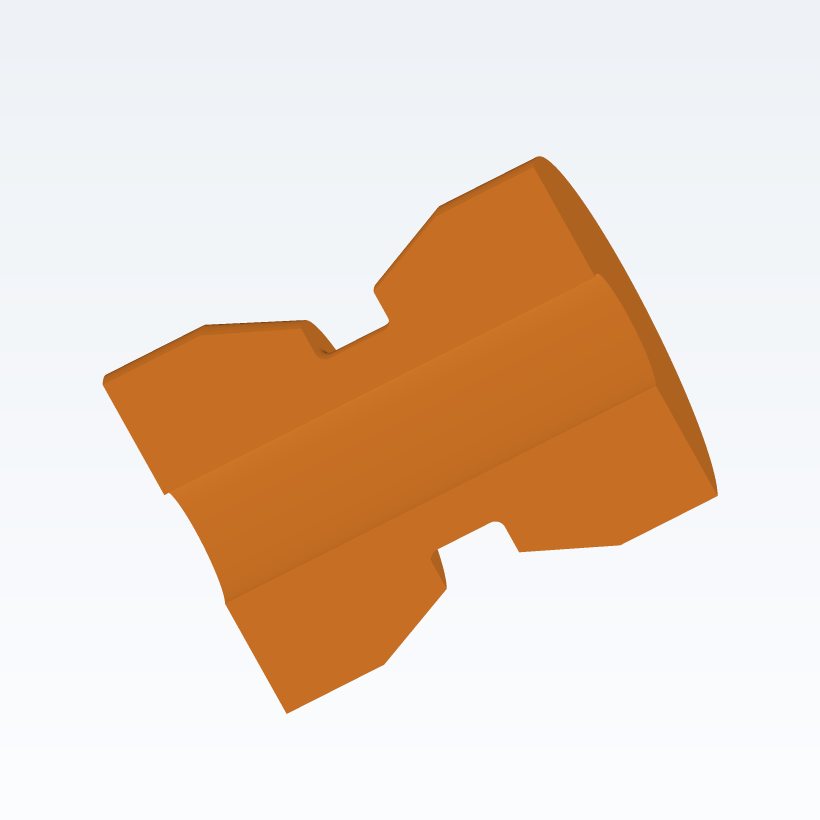

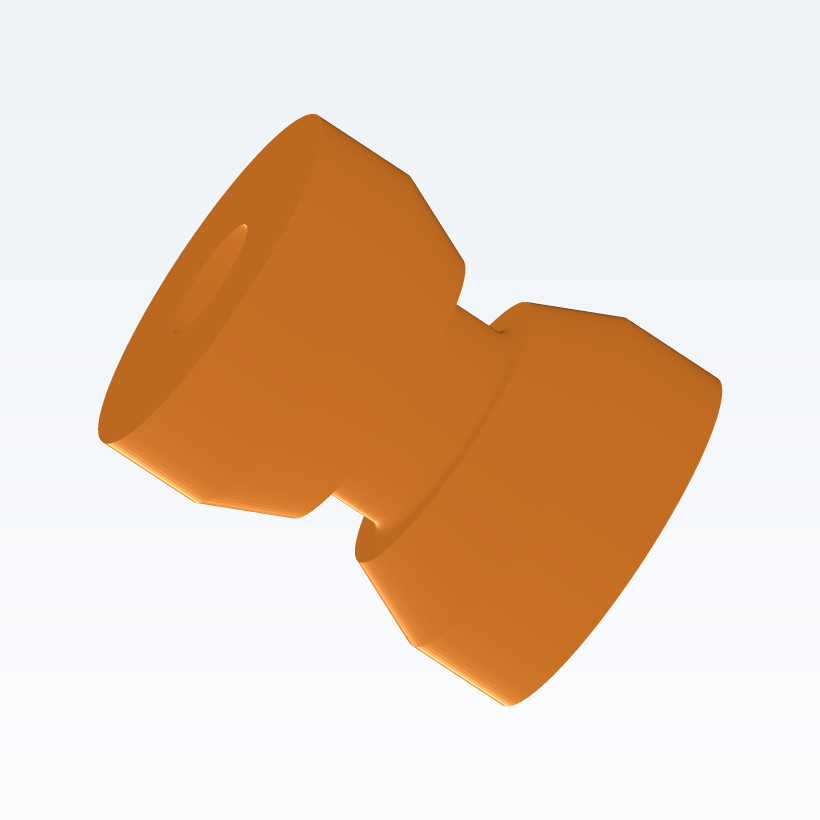

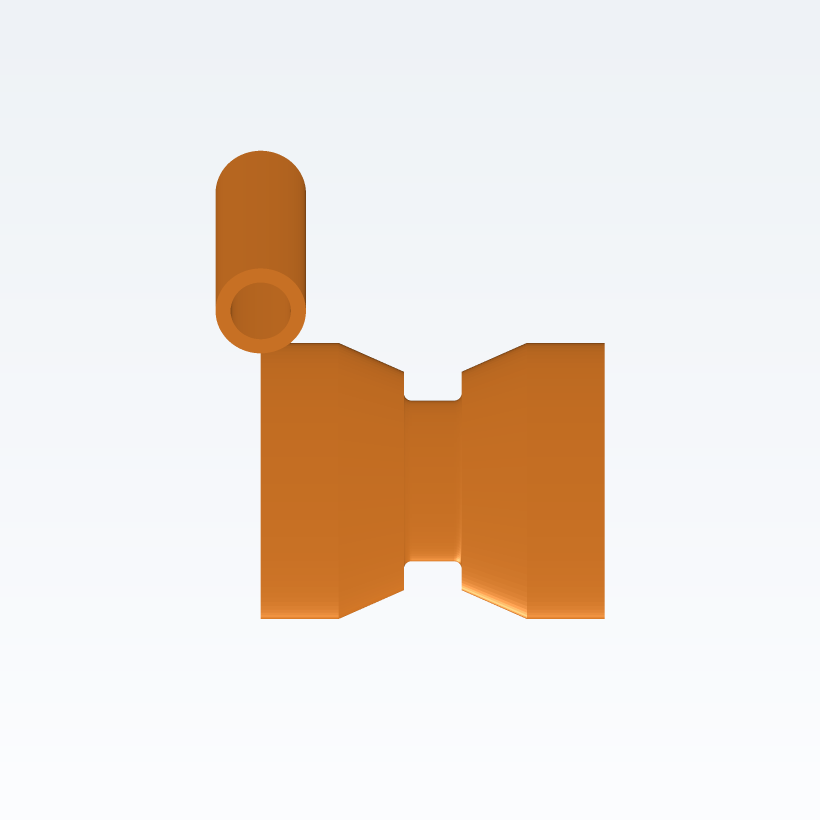

🔖 Art. ML3D_0040 Parametric ANCHOR BOW ROLLER by MarineLab3D — a replacement grooved roller for your bow fitting (musone). Size it to your bow roller width and chain caliber, preview in 3D, and after purchase receive STL files generated to your specs. ⚓ Central groove: narrow straight channel at the base (chain caliber + 1.5 mm) for the standing links, rounded bottom, flaring open in the upper half to the chain link width (≈3.6 × caliber + 1.5 mm) for the flat links — cradles and guides the chain so it does not jump off. 📏 Roller length = your bow-roller gap; outer Ø ≥ chain + 20 mm for strength. 🛞 Through-bore for the pin/axle. Optional PRINTED BUSHING (separate part, included): inner Ø = your pin, wall 3 mm; the roller bore is sized to the bushing OD with print tolerance for a precise, play-free fit. 🧵 Print specs: 100% infill. Roller — PA612-CF strongly recommended (high wear & UV/marine resistance); ASA or PETG-CF as alternatives. Bushing — PTFE-filled filament (self-lubricating, low friction). Use “Customize dimensions” to set bow-roller width, chain caliber, outer Ø, pin Ø and bushing option.

🖨️ No 3D printer? After purchase you can request an instant print quote on your download page: your model is sent pre-loaded to our partner Craftcloud, which compares ~180 print services worldwide and ships the finished part to your door — no printer or setup needed.

📄 License — Personal use only. Print this model for your own personal use. Reselling or sharing the file, or selling printed copies, is not allowed. © MarineLab3D — full terms.

Related designs: Boat Cleat — Custom Length, Threaded Holes or Studs (3D Print), Deck Rope Organizer / Fairlead — 1–5 Low-Friction Eyes (Parametric, 3D Print), Rope Sheave / Pulley for Dyneema · Spectra · Polyester (Parametric, 3D Print)

Disclaimer. MarineLab3D sells digital 3D files, not finished parts. The strength, fit and safety of the printed part depend on your printer, material, settings and assembly, which are outside our control. Verify all dimensions before printing, use the recommended material and inspect every print. Provided “as is” without warranty; to the maximum extent permitted by law MarineLab3D is not liable for any damage, loss or injury arising from their use. Not certified marine equipment. Full Disclaimer & Terms of Use.

⚠ Load-bearing / pressure part. Suggested loads or pressures are indicative estimates for a well-printed part in the recommended material, not guarantees. Run your own load/pressure test before relying on it. Do not use for life-safety or critical applications (lifelines, harness/tether attachment, standing rigging, steering, gas or fuel systems) unless independently tested and certified by a qualified professional.
