BSP Manifold Body (parametric outlets) — Parametric (3D Print)

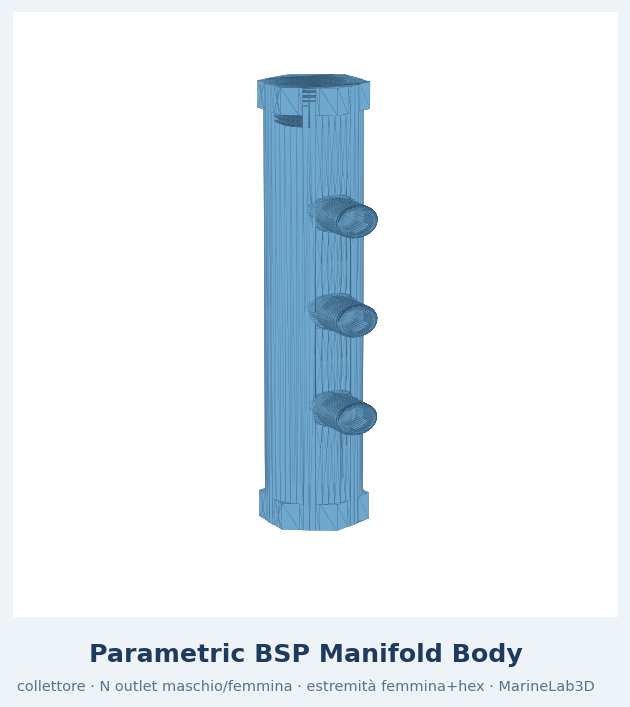

Parametric BSP MANIFOLD BODY by MarineLab3D — split one line into several. A round body with N side outlets and two female BSP ends (with wrench hex). Sized to your needs: the body diameter and length adapt to the number and size of outlets.
🔩 Two ends: female BSP thread (ISO 228, inch sizes) with a tightening hex
🔀 1–8 side outlets, each MALE or FEMALE BSP, in your chosen inch size
↔️ Outlets spaced to leave room to screw on a hose barb or a valve and to use a wrench
🧵 MarineLab3D thread profile (helical, truncated crests) · through bore connects everything
🖨️ Print in PETG/ASA · PA612-CF for fuel/pressure. Axis vertical, 3–4 perimeters. Seal threads with O-ring/PTFE.
Use “Customize dimensions” to set end size, number of outlets, outlet size and type, preview in 3D, then receive your STL after purchase.
🔩 Two ends: female BSP thread (ISO 228, inch sizes) with a tightening hex
🔀 1–8 side outlets, each MALE or FEMALE BSP, in your chosen inch size
↔️ Outlets spaced to leave room to screw on a hose barb or a valve and to use a wrench
🧵 MarineLab3D thread profile (helical, truncated crests) · through bore connects everything
🖨️ Print in PETG/ASA · PA612-CF for fuel/pressure. Axis vertical, 3–4 perimeters. Seal threads with O-ring/PTFE.
Use “Customize dimensions” to set end size, number of outlets, outlet size and type, preview in 3D, then receive your STL after purchase.
BSP Manifold Body (parametric outlets) — Parametric (3D Print)
Sale price€8,50
Choose options
