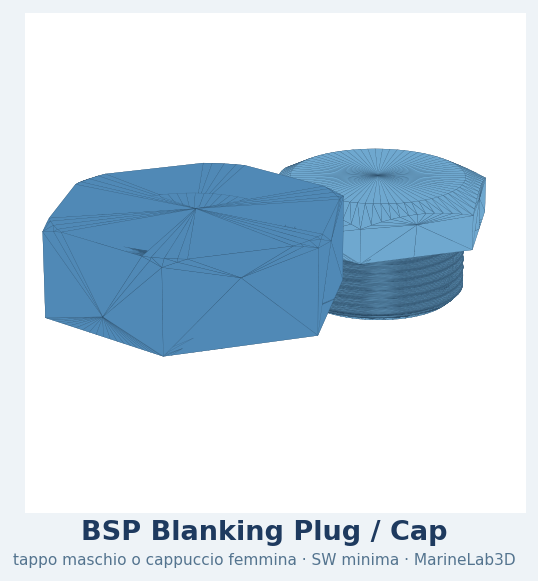

BSP Blanking Plug / Cap — Parametric (3D Print)

🔖 Art. ML3D_0031

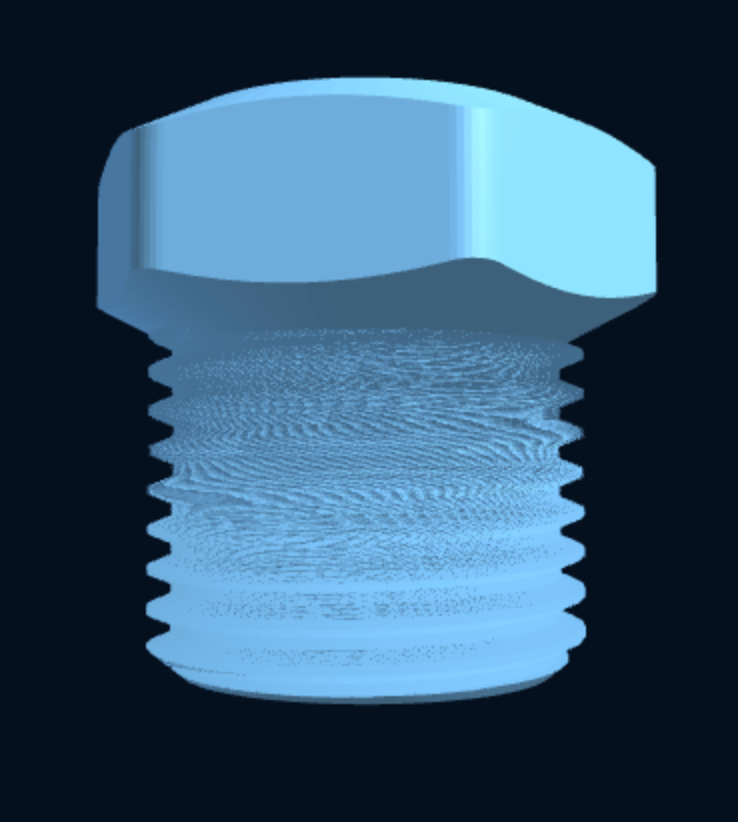

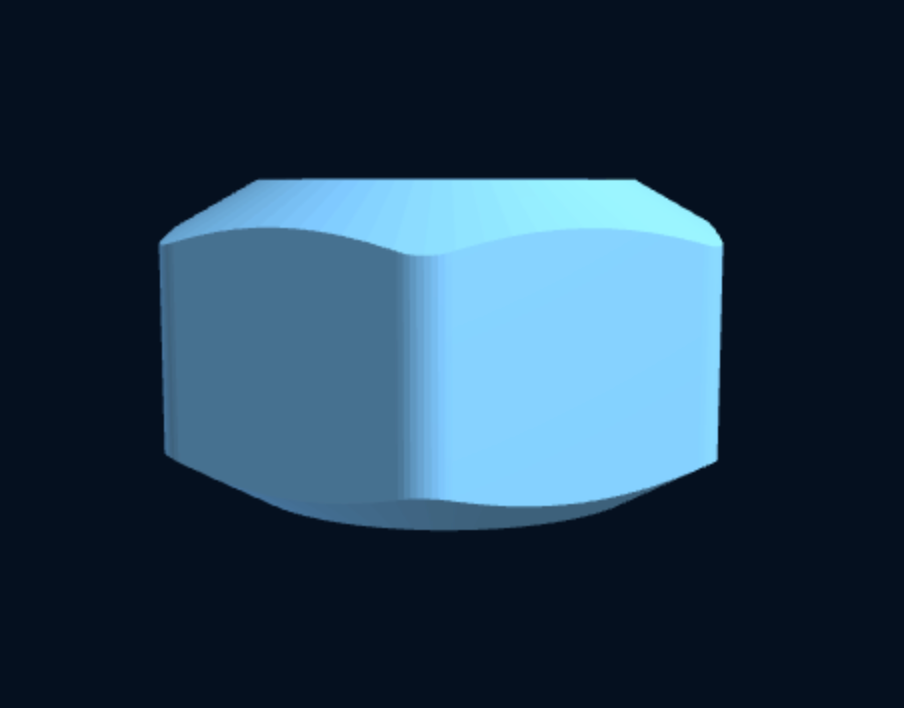

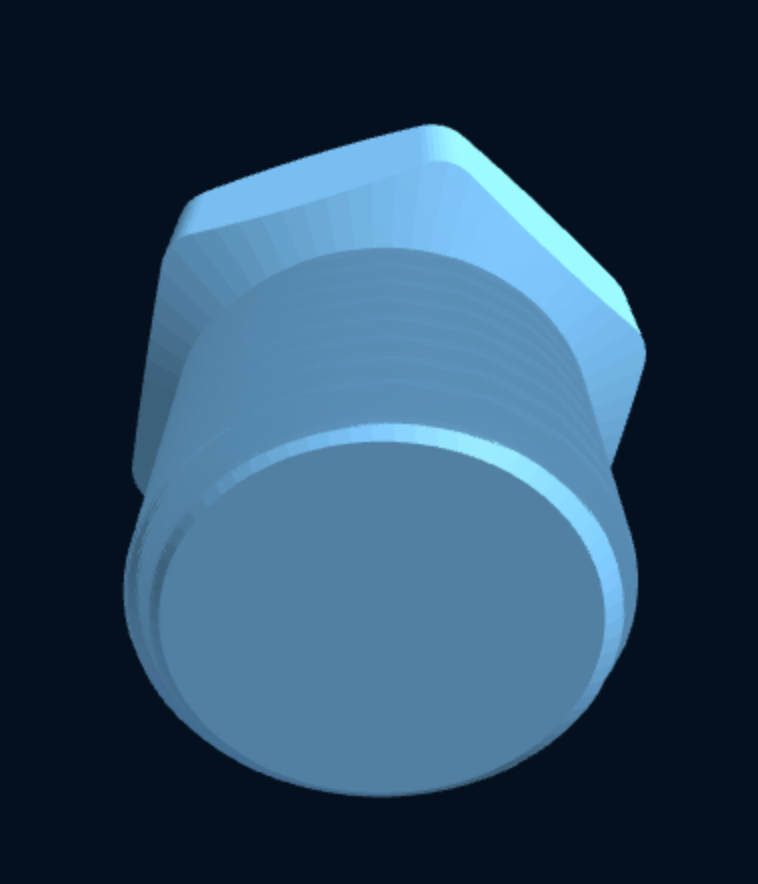

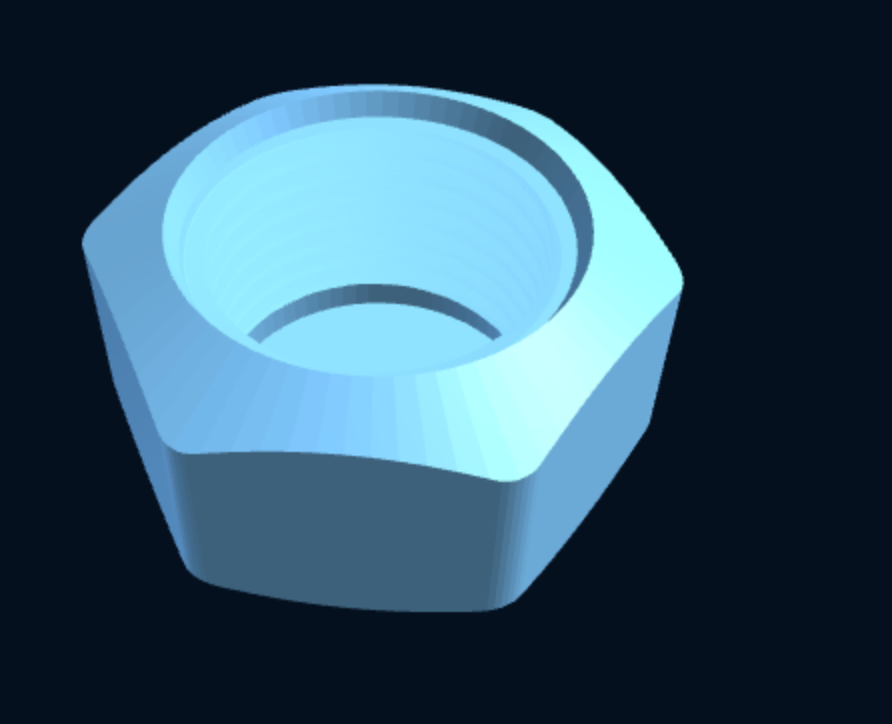

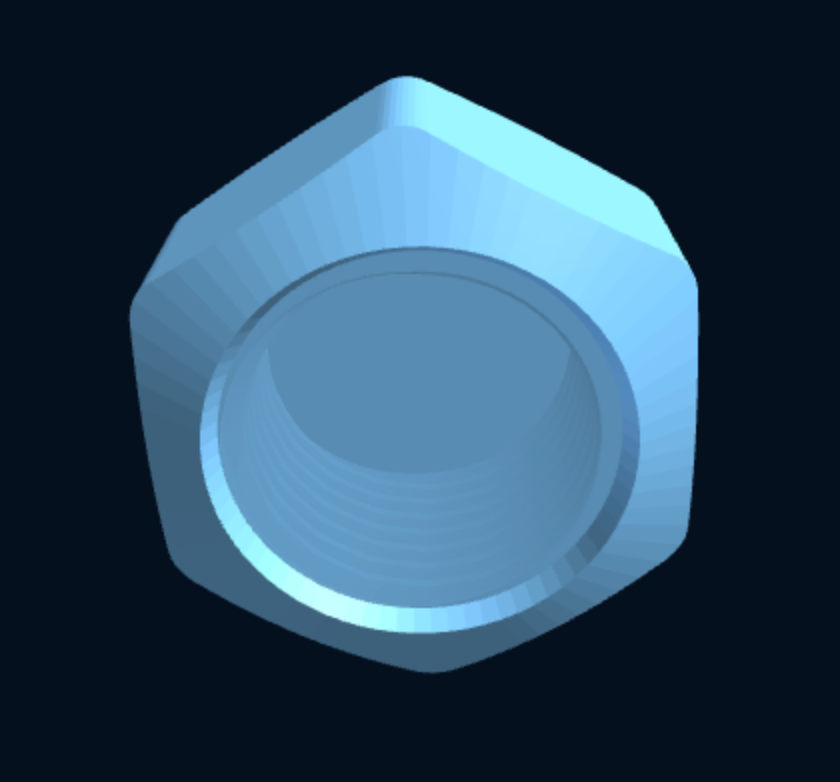

🔖 Art. ML3D_0031 FREE parametric BSP BLANKING PLUG / CAP by MarineLab3D — close off a BSP port on a manifold, fitting or pipe. Pairs with our parametric Manifold Body and BSP fittings. 🔩 Male plug: solid male BSP thread + wrench hex (compact min A/F) — screws INTO a female port (manifold ends, female outlets) 🧢 Female cap: closed hex cap with internal thread — screws OVER a male port/nipple 📐 BSP sizes 1/8" to 1 1/2" (ISO 228) · optional O-ring face seat 🖨️ Print in ASA/PETG · PA612-CF for fuel/pressure. Seal with PTFE tape or an O-ring. Use “Customize dimensions” to set BSP size, male/female and O-ring, preview in 3D, then download your free STL. ⚠️ PRESSURE USE (above ~1 bar): print in PETG (not ASA — better layer sealing), with SOLID walls (enough perimeters to fully fill the wall thickness — do not rely on infill), Z-seam set to “Scarf joint”, low part-cooling fan, flow +2–3%, and the thread/seam axis VERTICAL. Most onboard plumbing systems run at max ~3 bar: at this level these print settings + a GENEROUS amount of PTFE tape / thread sealant on the threads are enough. Always pressure-test at ~2× working pressure before use. Only for pressures above ~4 bar: also brush a thin coat of epoxy resin inside for a guaranteed seal. A 3D-printed fitting is a valid solution but always verify it for your specific application. 🖨️ No 3D printer? After your purchase, on your download page you can request an instant print quote: your model is sent pre-loaded to our partner Craftcloud, which compares ~180 print services worldwide and ships the finished part to your door — no printer or setup required. 📄 License — Personal use only. Print this model for your own personal use. Reselling or redistributing the file, or selling printed copies, is not allowed. © MarineLab3D — full terms: https://marinelab3d.com/pages/license

Related designs: BSP Female Coupling / Reducing Socket — Parametric (3D Print), BSP Reducing Bushing (Male × Female) — Parametric (3D Print), BSP Manifold Body (parametric outlets) — Parametric (3D Print)

Disclaimer. MarineLab3D sells digital 3D files, not finished parts. The strength, fit and safety of the printed part depend on your printer, material, settings and assembly, which are outside our control. Verify all dimensions before printing, use the recommended material and inspect every print. Provided “as is” without warranty; to the maximum extent permitted by law MarineLab3D is not liable for any damage, loss or injury arising from their use. Not certified marine equipment. Full Disclaimer & Terms of Use.

⚠ Load-bearing / pressure part. Suggested loads or pressures are indicative estimates for a well-printed part in the recommended material, not guarantees. Run your own load/pressure test before relying on it. Do not use for life-safety or critical applications (lifelines, harness/tether attachment, standing rigging, steering, gas or fuel systems) unless independently tested and certified by a qualified professional.
