Pipe Wall Clamp — 2-Piece with Mounting Post (Parametric, 3D Print)

🔖 Art. ML3D_0047

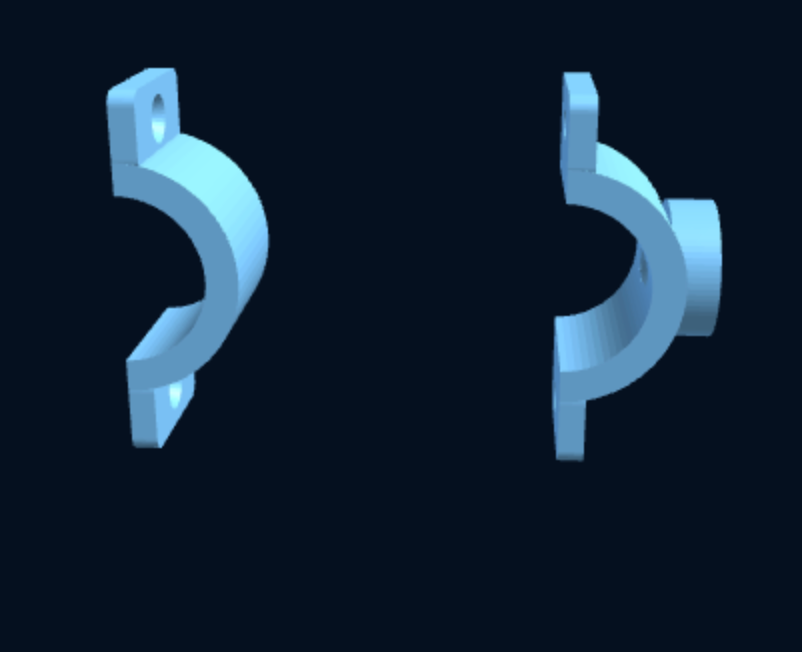

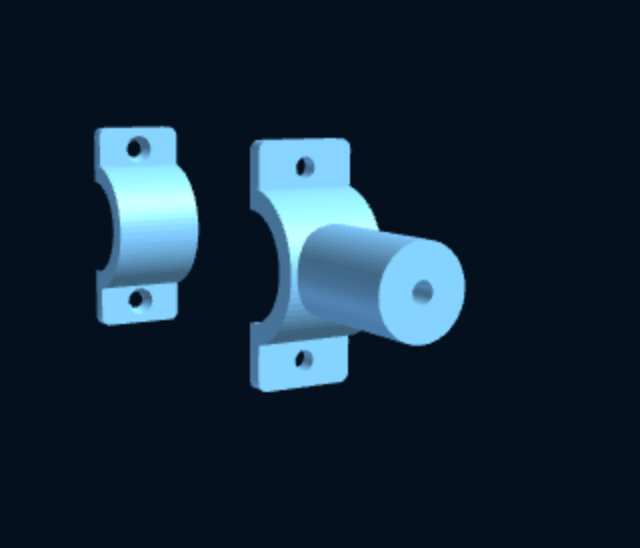

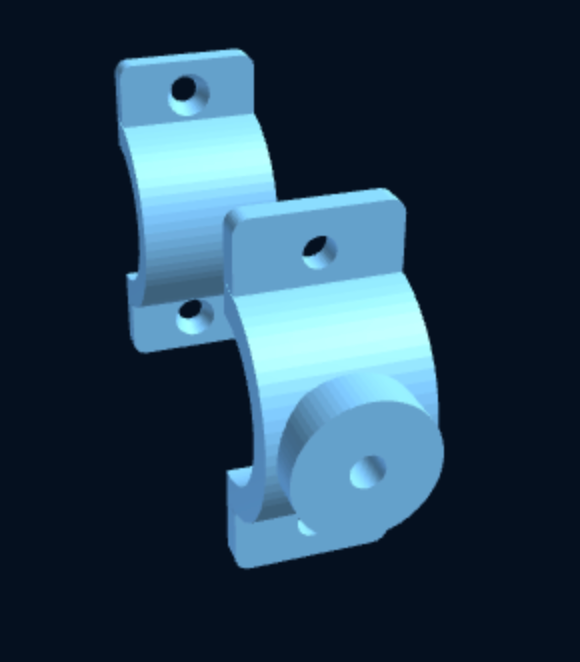

Parametric 2-piece pipe clamp by MarineLab3D — two half-collars that bolt around any tube, with an integrated cylindrical mounting post. Size it to your tube, set the post, preview in 3D, and after purchase receive your STL. 🔩 Two half-collars clamped together by 2 side screws (countersunk heads on the outer half). 🧱 Integrated mounting post on the back: a solid cylinder with a through-bore, countersunk on the inside of the collar so the screw head sits flush and never touches the tube. 📏 Fully adjustable: tube Ø, clamp width, clamp-bolt Ø, post height (5–100 mm) and post bore Ø (always kept ≥ 3 mm smaller than the post, for a safe wall). ⚓ Ideal for routing pipes, cables, rails or rod holders along a bulkhead, deck or locker wall. 🧵 Print specs: PETG or ASA recommended (marine, UV/heat resistant). 0.2 mm layers, 3 perimeters, no supports needed. Prints flat. Use "Customize dimensions" to set every measure, preview in 3D, then receive your STL after purchase.
