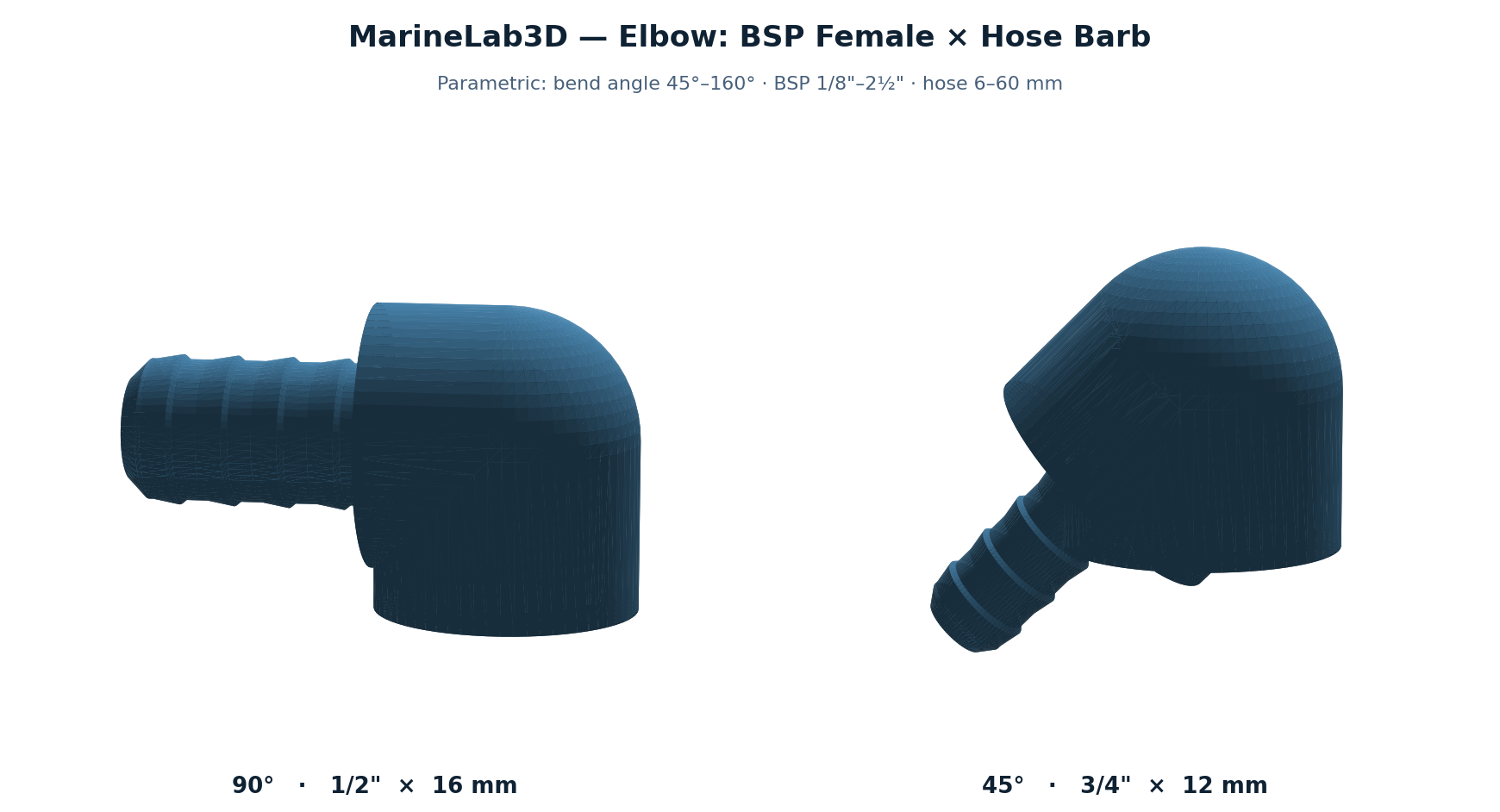

Elbow — BSP Female × Hose Barb — Parametric (3D Print)

Parametric elbow fitting — female BSP socket on one side, hose barb on the other — by MarineLab3D.
Choose the bend angle and both sizes. For 3D printing in PETG or PA12.

📐 Bend angle: 45° to 160°
🔧 Female BSP thread (socket): 1/8" to 2 1/2" (BSPP parallel, 0.35 mm print clearance)
🪝 Hose inner diameter: 6 to 60 mm
🔩 BSPP thread seals with O-ring / PTFE; barbed tail sized to the hose ID

🖨️ Print recommendations: print with supports (the elbow has overhangs). PETG or PA12, 0.15–0.2 mm layers, 3 perimeters.

Use “Customize dimensions” to set angle + thread + hose, preview in 3D, then receive your STL after purchase.
