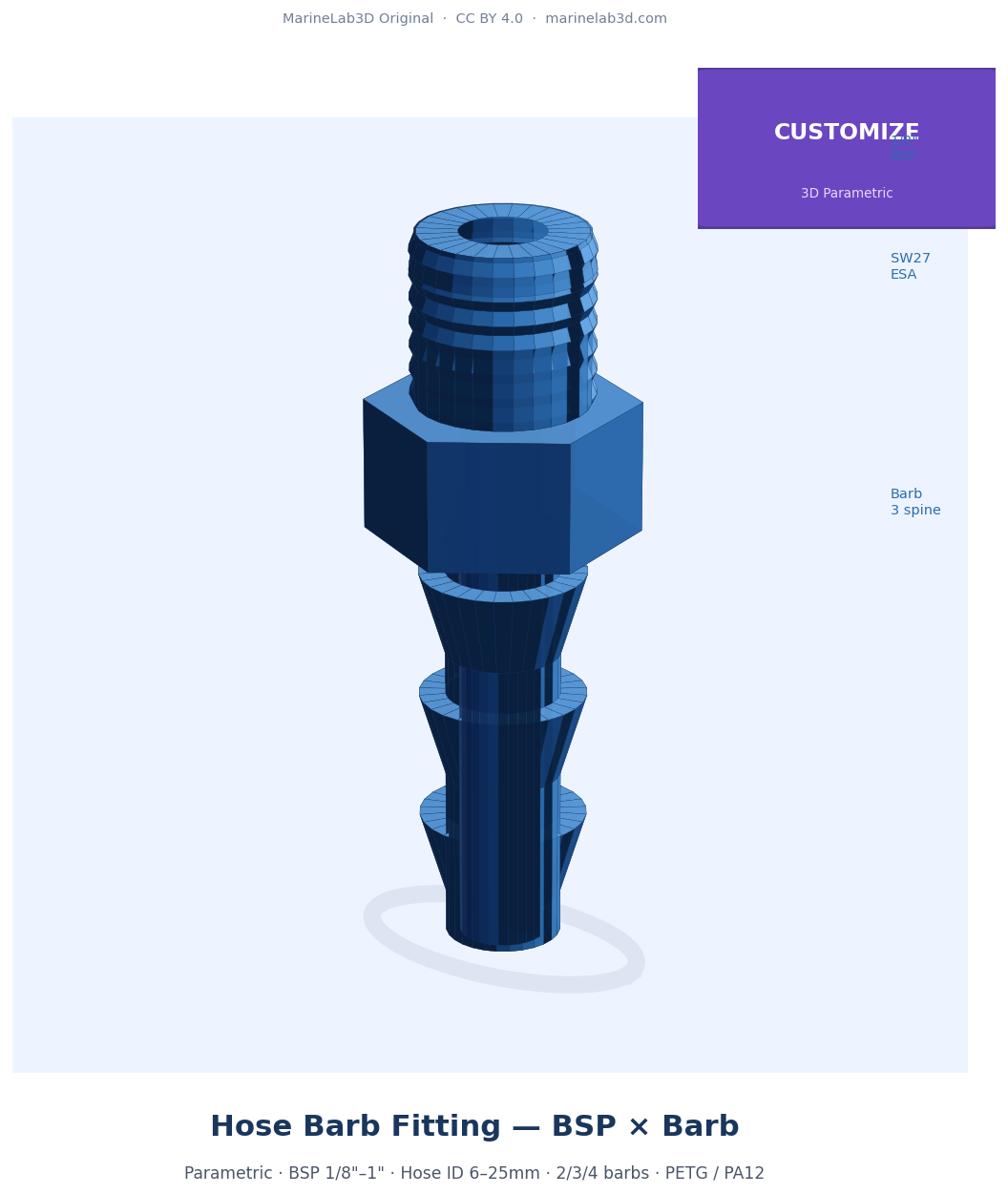

BSP Hose Barb Fitting — Parametric (3D Print)

🔖 Art. ML3D_0004

🔖 Art. ML3D_0004 Parametric BSP × Barb hose fitting by MarineLab3D. Customizable male BSP threaded fitting with 3-barb hose tail for rubber hose — designed for 3D printing in PETG or PA12. 🔧 Thread size : BSP 1/8" to 1" (6 sizes, DIN hex auto-calculated) 🔩 Hose inner diameter : 6 / 8 / 10 / 12 / 16 / 19 / 25 mm 🪝 3 barbs : 25° entry ramp + 90° vertical lock wall 🔑 Hexagonal wrench flat automatically sized per DIN 2999 (SW14–SW41) 📏 Adjustable hex body height: 10–200 mm — from a standard fitting to a long hex extension/standoff 🛠️ Chamfered barb-to-hex transition — smoother flow and a stronger junction 🛡️ Print in PETG or PA12 for saltwater & fuel resistance ⚙️ Tap thread after printing with BSP G tap for precise sealing Compatible materials: PETG · PA12 · CF-Nylon · ASA Note: BSP thread profile is approximated (circular teeth). For pressure applications, tap with a BSP G die after printing or use a brass insert. License: MarineLab3D Original — All rights reserved ⚠️ PRESSURE USE (above ~1 bar): print in PETG (not ASA — better layer sealing), with SOLID walls (enough perimeters to fully fill the wall thickness — do not rely on infill), Z-seam set to “Scarf joint”, low part-cooling fan, flow +2–3%, and the thread/seam axis VERTICAL. Most onboard plumbing systems run at max ~3 bar: at this level these print settings + a GENEROUS amount of PTFE tape / thread sealant on the threads are enough. Always pressure-test at ~2× working pressure before use. Only for pressures above ~4 bar: also brush a thin coat of epoxy resin inside for a guaranteed seal. A 3D-printed fitting is a valid solution but always verify it for your specific application. 🖨️ No 3D printer? After your purchase, on your download page you can request an instant print quote: your model is sent pre-loaded to our partner Craftcloud, which compares ~180 print services worldwide and ships the finished part to your door — no printer or setup required. 📄 License — Personal use only. Print this model for your own personal use. Reselling or redistributing the file, or selling printed copies, is not allowed. © MarineLab3D — full terms: https://marinelab3d.com/pages/license

Related designs: BSP Female Hose Barb Fitting — Parametric (3D Print), Hose Barb Connector / Reducer (Barb–Barb) — Parametric (3D Print), Elbow — BSP Male × Hose Barb — Parametric (3D Print)

Disclaimer. MarineLab3D sells digital 3D files, not finished parts. The strength, fit and safety of the printed part depend on your printer, material, settings and assembly, which are outside our control. Verify all dimensions before printing, use the recommended material and inspect every print. Provided “as is” without warranty; to the maximum extent permitted by law MarineLab3D is not liable for any damage, loss or injury arising from their use. Not certified marine equipment. Full Disclaimer & Terms of Use.

⚠ Load-bearing / pressure part. Suggested loads or pressures are indicative estimates for a well-printed part in the recommended material, not guarantees. Run your own load/pressure test before relying on it. Do not use for life-safety or critical applications (lifelines, harness/tether attachment, standing rigging, steering, gas or fuel systems) unless independently tested and certified by a qualified professional.
