Pipe Wall Clamp — 2-Piece with Mounting Post (Parametric, 3D Print)
🔖 Art. ML3D_0047

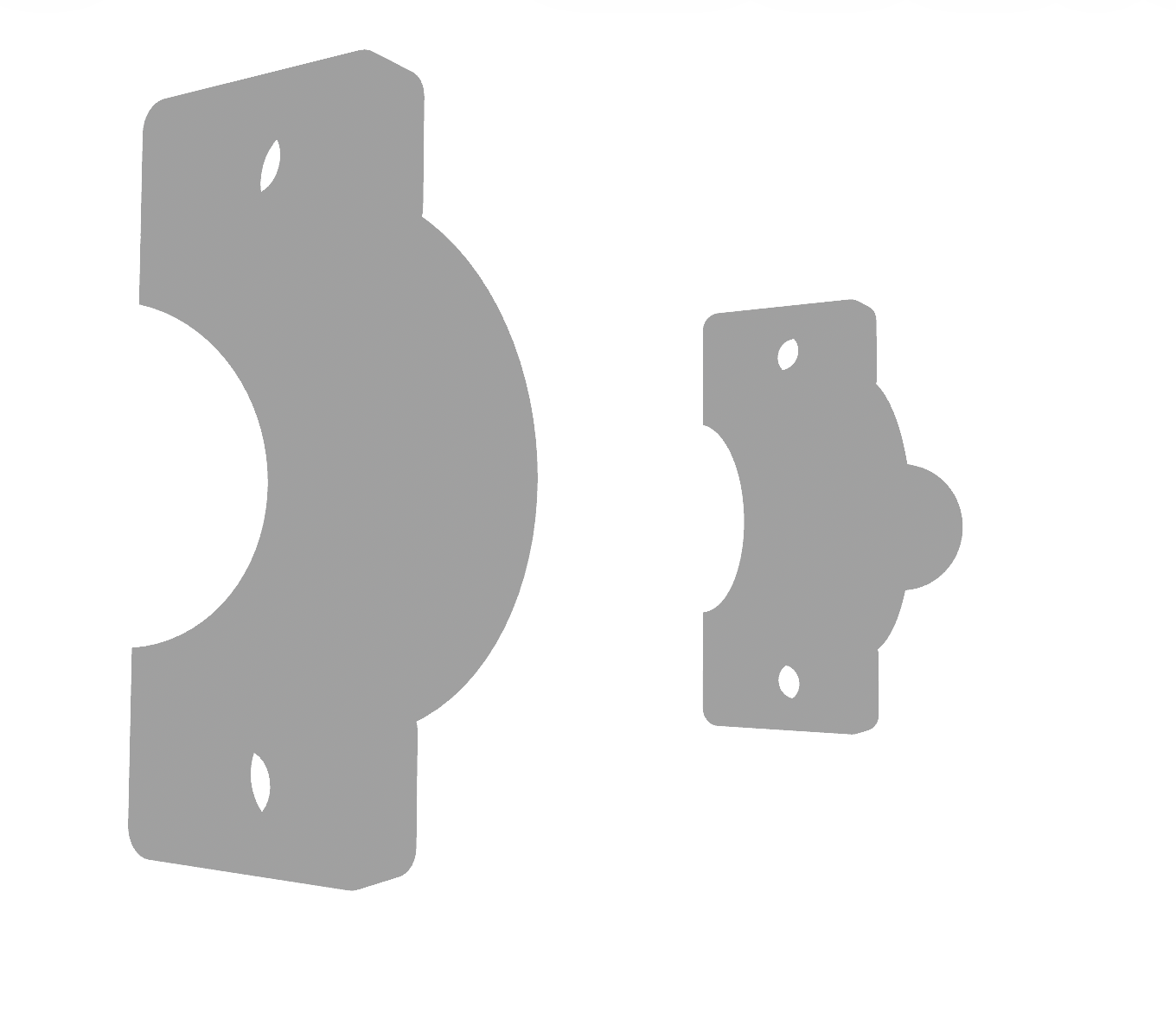

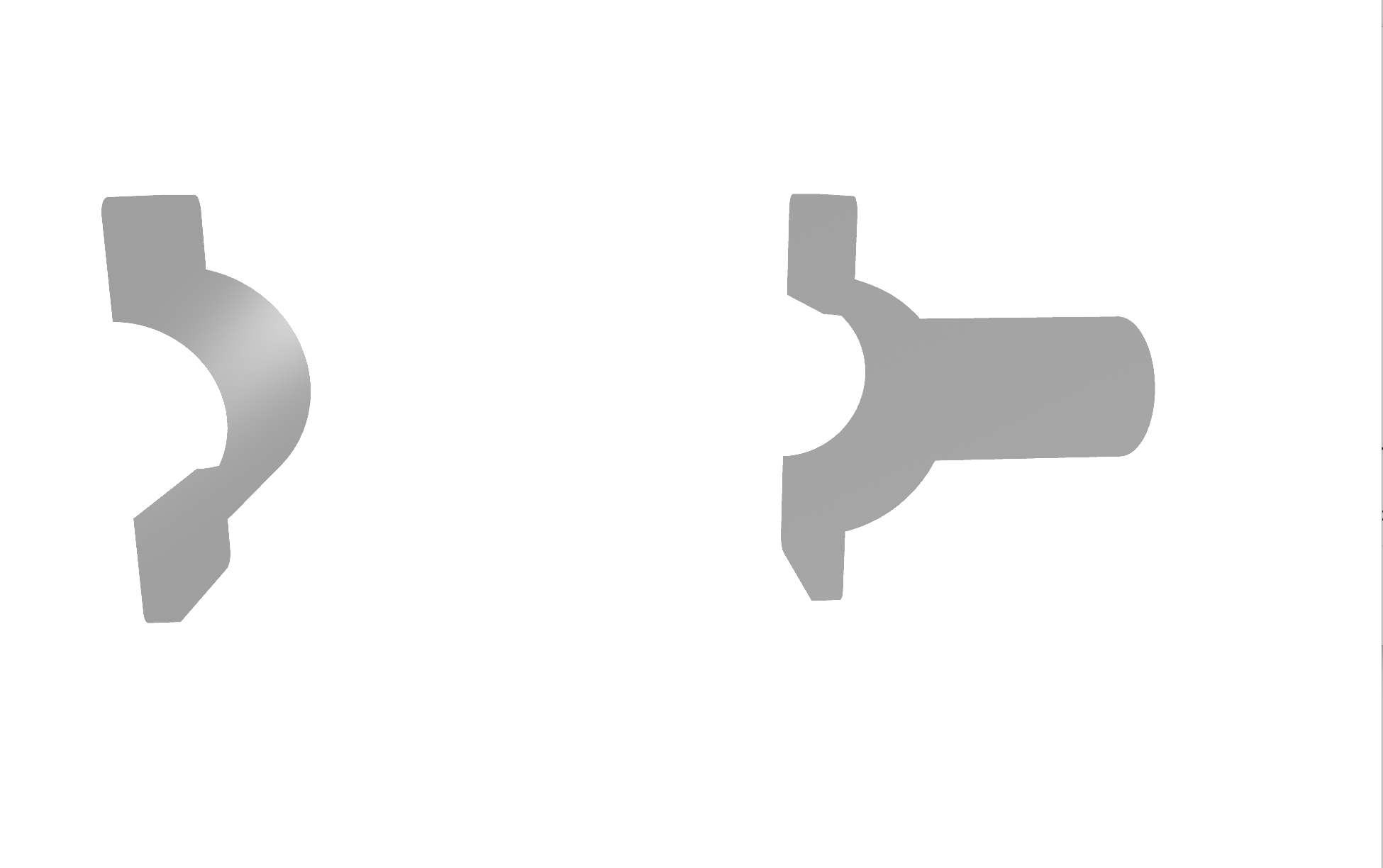

🔖 Art. ML3D_0047 Parametric 2-piece pipe clamp by MarineLab3D — two half-collars that bolt around any tube, with an integrated cylindrical mounting post. Size it to your tube, set the post, preview in 3D, and after purchase receive your STL. 🔩 Two half-collars clamped together by 2 side screws (countersunk heads on the outer half). 🧱 Integrated mounting post on the back: a solid cylinder with a through-bore, countersunk on the inside of the collar so the screw head sits flush and never touches the tube. 📏 Fully adjustable: tube Ø, clamp width, clamp-bolt Ø, post height (5–100 mm) and post bore Ø (always kept ≥ 3 mm smaller than the post, for a safe wall). ⚓ Ideal for routing pipes, cables, rails or rod holders along a bulkhead, deck or locker wall. 🧵 Print specs: PETG or ASA recommended (marine, UV/heat resistant). 0.2 mm layers, 3 perimeters, no supports needed. Prints flat. Use "Customize dimensions" to set every measure, preview in 3D, then receive your STL after purchase.
🔧 Specifiche tecniche
🖨️ Metodi di produzione compatibili
🧱 Materiali compatibili testati
FDM
📁 Formati file inclusi
ℹ️ File digitale — nessuna spedizione fisica. Dopo l'acquisto ricevi un link per scaricare i file direttamente.
Related designs: Tube-Mount Clip Holder (2-piece clamp) — Parametric (3D Print), Twin Pipe-Clamp Cross Bar — Rail-Mount Bar for Modular Kits (Parametric, 3D Print), Custom Wall Clip Holder — Parametric (3D Print)
Disclaimer. MarineLab3D sells digital 3D files, not finished parts. The strength, fit and safety of the printed part depend on your printer, material, settings and assembly, which are outside our control. Verify all dimensions before printing, use the recommended material and inspect every print. Provided “as is” without warranty; to the maximum extent permitted by law MarineLab3D is not liable for any damage, loss or injury arising from their use. Not certified marine equipment. Full Disclaimer & Terms of Use.
⚠ Load-bearing / pressure part. Suggested loads or pressures are indicative estimates for a well-printed part in the recommended material, not guarantees. Run your own load/pressure test before relying on it. Do not use for life-safety or critical applications (lifelines, harness/tether attachment, standing rigging, steering, gas or fuel systems) unless independently tested and certified by a qualified professional.
