Hose Slipping Off the Barb? 3D Print a BSP Hose Barb Fitting Sized to Your Hose

Few things on a boat are as irritating as a hose that weeps at the end. You tighten the clip, it holds for a week, and then there is a damp patch under the pump again. Often the real problem is not the clip: the barb is the wrong size for the hose, the barb has worn smooth, or the fitting is a thread you cannot buy in the right combination. A hose tail with the correct diameter and a proper locking profile fixes most of these leaks.

The problem: the barb and the hose never quite match

Boat plumbing mixes imperial pipe threads with metric hose. A pump or tank outlet may be a BSP thread, while the hose in the locker is 12 mm, 16 mm or 19 mm inside diameter. Chandlery adapters cover the common pairings, but the awkward ones, such as a long standoff to clear a bulkhead or an unusual hose size, are either missing or sold in a bulk pack you do not need. If you have already measured your hose and thread (see How to Measure a Hose and Thread for a Perfect 3D-Printed Fitting), you have everything you need to print the part yourself.

Why a printed fitting makes sense here

A printed fitting does not corrode, so there is no green crust where brass meets a stainless clip, and no electrolysis between dissimilar metals. It can be made to the exact hose ID and length, and you can reprint a spare in an afternoon. If you have not yet picked a filament, the material comparison in PETG vs ASA vs Nylon covers the trade-offs.

The protagonist: a parametric male BSP x 3-barb fitting

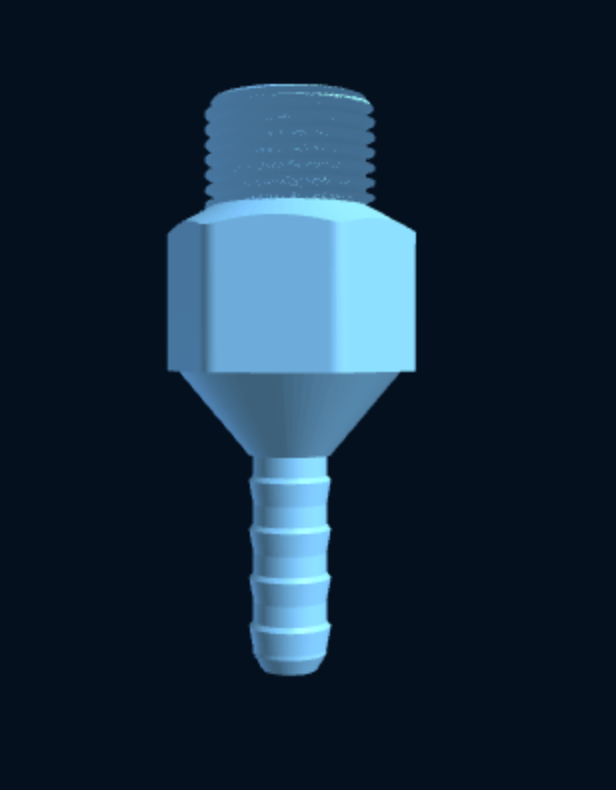

The BSP Hose Barb Fitting is a parametric file: a male BSP threaded end, a hex wrench flat, and a three-barb hose tail for rubber hose. The configurable parameters are:

• Thread size: BSP 1/8" to 1" (six sizes), with the hex flat calculated automatically to DIN 2999 (SW14 to SW41).
• Hose inner diameter: 6, 8, 10, 12, 16, 19 or 25 mm.
• Barbs: three barbs, each with a 25 degree entry ramp and a 90 degree vertical lock wall, so the hose slides on but resists pulling off.
• Hex body height: adjustable from 10 to 200 mm, so the same file gives you a short fitting or a long standoff.
• Transition: a chamfered barb-to-hex junction for smoother flow and a stronger joint.

Measurements to take before you configure it

1. The thread you are screwing into: identify the BSP size (for example 1/2") from the port or the old fitting.
2. The hose inner diameter: measure the bore with calipers, not the outside, and pick the nearest listed size.
3. The clearance you need: if the hose must clear a bulkhead or a tank shoulder, raise the hex body height to suit.

Material and print settings

The product recommends PETG or PA12 for saltwater and fuel resistance; ASA and CF-Nylon are also listed as compatible. For water at ordinary onboard pressures, PETG is the practical choice. Prepare the print like this:

• Orient the part with the thread and seam axis vertical.
• Use enough perimeters to fill the wall completely with solid walls rather than relying on infill.
• Set the Z-seam to Scarf joint, use a low part-cooling fan, and add about 2 to 3 percent flow for better layer bonding.
• For pressures above about 1 bar, print in PETG rather than ASA, which seals layers less well.

The thread profile in the file is approximated with circular teeth, so tap the printed thread with a BSP G tap after printing for a proper seal, or fit a brass insert. We cover how layer lines leak and how to avoid it in How to 3D Print Watertight Boat Fittings That Hold Pressure.

Installation and use

1. Test-fit the hose on the barbs dry. If it will not start by hand, warm the hose end in hot water rather than forcing it.
2. Tap the thread, then wrap it with a generous amount of PTFE tape or thread sealant. See Sealing 3D Prints for the options.
3. Hand-tighten, then finish with a spanner on the hex flat. Stop as soon as the joint feels firm; plastic threads do not need the torque brass does.
4. Push the hose fully over all three barbs and add a stainless clip over the hose, not over the first barb edge.
5. Pressure-test at about twice the working pressure before you rely on it, and check again after the first day under load.

Most onboard plumbing systems run at a maximum of about 3 bar. At that level the print settings above and plenty of thread sealant are normally enough. Only above roughly 4 bar does the product advise brushing a thin coat of epoxy inside as well.

Related parts

Many connections need the female half or a different shape. The BSP Female Hose Barb Fitting suits ports that carry a male thread, and the BSP Male x Hose Barb Elbow helps where a hose would otherwise kink. If you leave a port unused, the BSP Blanking Plug / Cap seals it. The whole plumbing range is in the Plumbing & Pumps collection.

Safety note

Printed parts are not certified marine equipment. Verify that the material and the design suit your application, and do not use a printed fitting for fuel or gas systems, below the waterline on a through-hull, or anywhere failure could endanger the boat or crew, unless it has been independently tested and approved. Always pressure-test and inspect regularly.
